PRE-CUTTING MACHINE

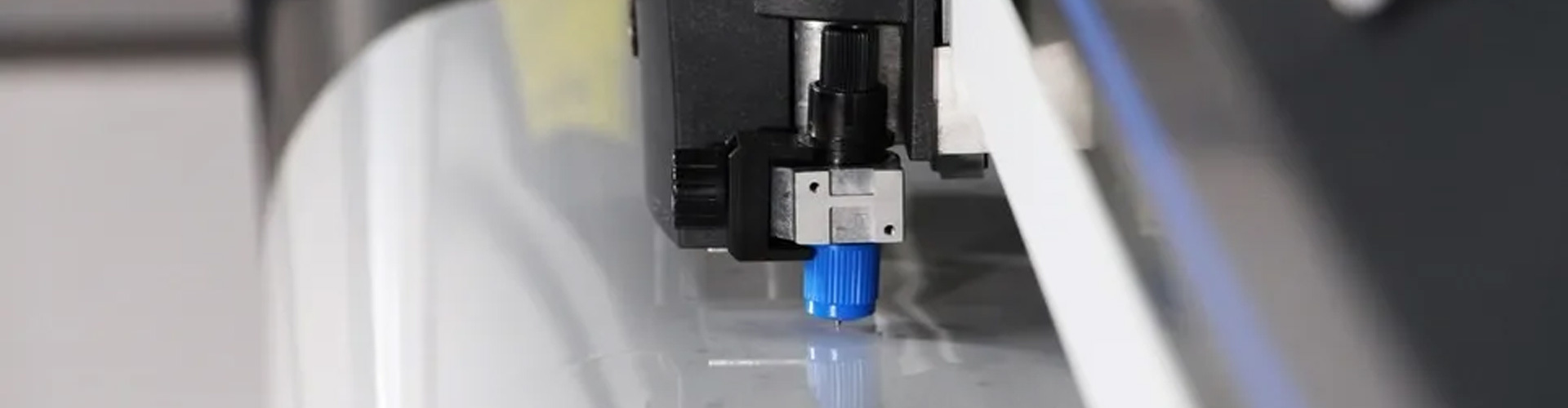

The pre-cutting machine is a specialized tool used for accurately cutting paint protection films and window tints.
It comes with car body and window data package.
Available in two models.
Available in two models.
| Model | KC165S | FC1613U |
| Photo |  |
 |
| Structure | Vertical | Horizontal |
| Application | PPF/wrapping film | PPF/wrapping film/window tint |
| Max material width | 1660mm | 1700mm |
| Max cutting width | 1550mm | 1600mm |
| Max cutting speed | 1200mm/s | 1100mm/s |
| Cutting force | 10~1000g | 10~1000g |
| Repeatability | ±0.025mm | ±0.025mm |
| Power | 80W | 3kW |
| Power supply | AC 220V/110V, 50~60Hz | AC 220V/110V, 50~60Hz |
| Material supply | Auto feeding/winding | Platform |
| Control | Microcomputer | Microcomputer |
| HMI | 4.3" LCD touch screen | 7" LCD touch screen |
| Drive | High speed servo drive | High speed servo drive |
| Interface | USB/U Disk/Ethernet | USB/U Disk/Ethernet |
| Condition | Tem: 5~35℃/RH: 30~70% | Tem: 5~35℃/RH: 30~70% |
| Dimensions | 1950×360×450mm | 2000×1900×1350mm |
| Weight | 53kg | 300kg |
